Specifications:
Maximum input current: 80A
Every channel maximum output current: 30A
Working voltage: 220V /50-60Hz
Power of every channel: Every channel is up to 3000 W
The input and output voltage: AC input voltage = AC output voltage
(optional)

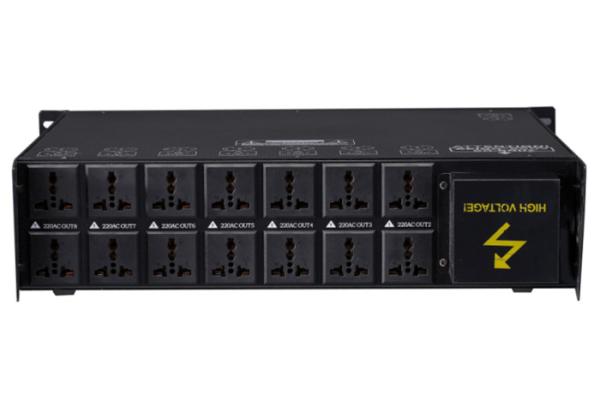

The output power socket:The multi-purpose socket, in line with
European and American standards.16 pieces controlled universal
sockets in rear panel
Socket material: Each socket material is phosphor copper, passed
inspection before installation
Each switch interval time:1 second, 1 switch indicator for every
two channels, the front-end configuration a safety switch button
(BYPASS)
Relay:Ningbo pine le brand (original quality goods)
Circuit board :Using 60% high purity tin, high-end distribution
technology, through enhancing bold processing
transformer: A &c original factory
The power cord: The built-in wire is 2.5 square meters per channel,
and the built-in 10 square wire is connected to the external line.
(The factory does not provide external cable, and it is
self-provisioned according to actual project requirements)
The voltage display table: Digital display meter
Cabinet height: 2u
switch: from German(air switch)
Controlled function: YES, each channel is controlled individually,
and each control button controls 2 channels up and down, 16 pieces
controlled universal plugs
Online mode: Yes, it can support 8 devices to be online at the same
time), online port: Canon interface
Central control interface: Yes, optional USB to RS232 connection
interface
filter: Capacitor filter
